FTTx / Data Room Field Assembly Connector 51 * 9 * 7.55 Mm Bow Type Drop Cable

Product Categories

Optic Network Technology Co., Ltd.

Contact Now

Model Number : ESC25D-APC

Place of Origin : Zhejiang,China

MOQ : 50 pcs

Payment Terms : T/T

Delivery Time : in one week

Cable Scope : 3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable

Size : 51*9*7.55mm

Fiber Diameter : 125μm ( 652 & 657 )

Coating Diameter : 250μm

Mode : SM

Operation Time : about 15s（exclude fiber presetting)

Insertion Loss : ≤ 0.3dB（1310nm & 1550nm)

Return Loss : ≤ -50dB for UPC, ≤ 55dB for APC

Contact Now

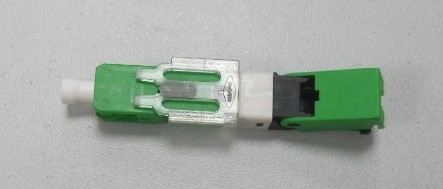

Mechanical Fiber Optic Connector-Fiber Pre-embeded Tech

ESC25D-APC

FTTx / Data Room Field Assembly Connector 51 * 9 * 7.55 Mm Bow Type Drop Cable

Application FTTx,Data Room Transformation

Cutting 250um fiber 20.85mm, 125um fiber 7.7mm

Technical specification

Item	Parameter
Cable Scope	3.0 x 2.0 mm and 1.6*2.0mm Bow-type Drop Cable
Size:	5197.55mm
Fiber Diameter	125μm ( 652 & 657 )
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.3dB(1310nm & 1550nm)
Return Loss	≤ -50dB for UPC, ≤ 55dB for APC
Success Rate	>98%
Reusable Times	>5 times
Tensile Strength	>30 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total)	IL ≤ 0.3dB

Relevant Solutions

Easy operating, The connector can be directly used in ONU, also with fasten strength more than 5 kg, it is widely used in FTTH project of network revolution. It also reduce the use of sockets and adapters, save cost of project.
With 86 standard socket and adapter, the connector makes connection between drop cable and patch cord. The 86 standard socket provides complete protection with its unique design.
Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.
